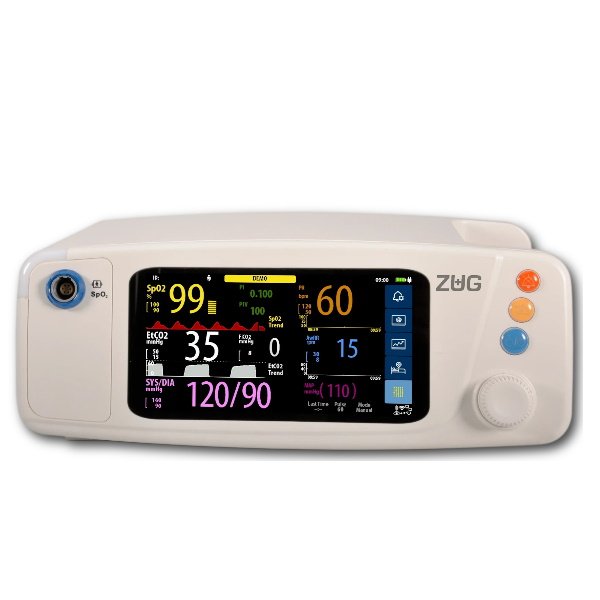

Patient monitor SpotLife® Touch

Patient monitor SpotLife® Touch intended for continuous monitoring of important vital signs of patients (adults, pediatric and neonate)

SpotLife® Touch Vital signs monitor has been designed to serve frontline caregivers in emergency, perioperative care and ICU/NICU departments.

With its accurate oximetry adapted for adults as well as neonate, it provides a continuous and accurate monitoring of the SpO2 and PR even in case of low perfusion.

SpotLife®  is available in versions with either NIBP or CO2 measurement with optional fast temperature monitoring.

Its handle and lightweight make it easy for transport use while its 4 stable feet allow a reliable use as bedside monitor.

Equipped of a touch screen and a knob it is extremely easy and smooth to navigate through the menus and selection.

Its 3 backlighted buttons for alarm, start/stop NIBP measurement and power are visible at anytime in any light condition.

FEATURES:

• 5′ TFT display

• touch activated display panel is inclined at 15°, which is convenient for doctors to view

• 72-hour data storage , uninterrupted recording trend data, with dual alarm function of sound and light , alarm parameters

• RS232 serial port data transmission function.

• Multiple models, standard configuration SPO2，

  List of possible configurations:

  SPLF-OXT: SpO2, PR, PI

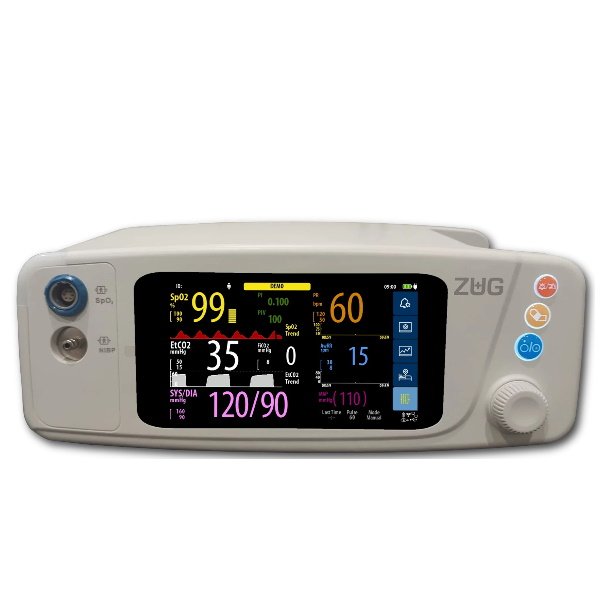

  SPLF-NPT: SPO2, PR, PI, NIBP
  SPLF-MCT: SpO2, PR, PI, Mainstream CO2 with EtCO2, FiCO2, AwRR
  SPLF-SCT: SpO2, PR, PI, Internal Sidestream CO2 with EtCO2, FiCO2, AwRR
  SPLF-SET: SpO2, PR, PI, External Sidestream CO2 with EtCO2, FiCO2, AwRR

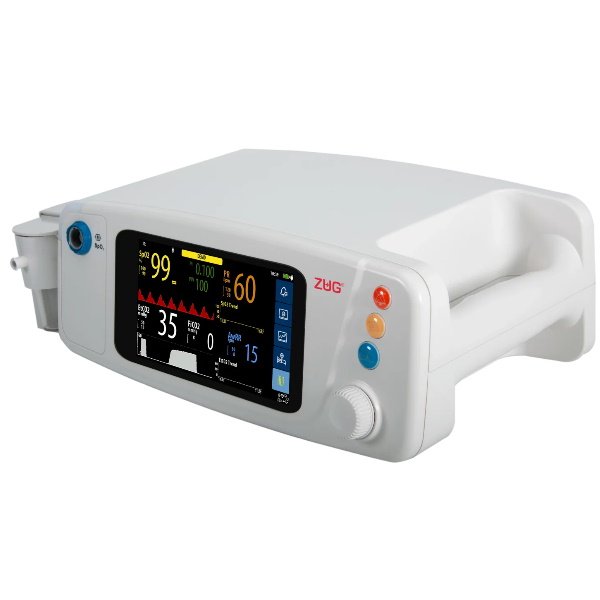

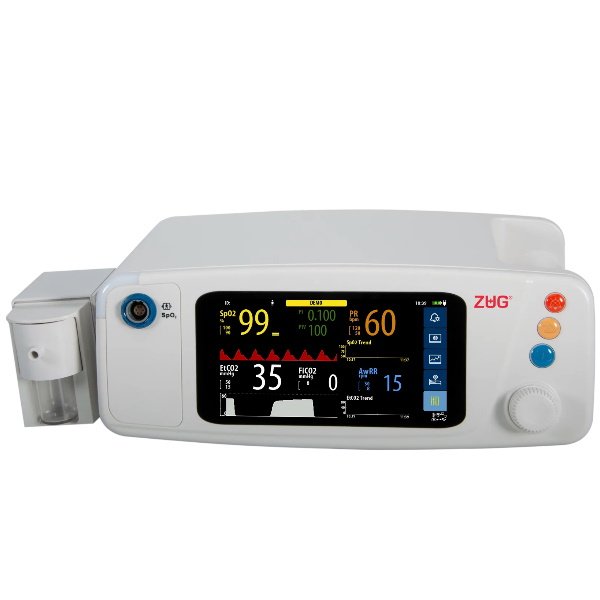

  SPLF-SWT: SPO2, PR, PI, Internal Watertrap Sidestream CO2 with EtCO2, FiCO2, AwRR



PARAMETERS:

Oximetry (All models):

SPO2: Measurement Range: 0 – 100%, Accuracy Range: 70 – 100 %, ±2% < 70%, Undefined, Resolution: 1%

Pulse Rate: Measurement Range: 15-300 bpm, Accuracy Range: ±2%, Resolution: 1 bpm

PI: Measurement Range: 0-20%, Resolution: 0.001%

PIV: Measurement Range: 0-100%, Accuracy Range: Undefined, Resolution: 1%

Ethernet Port

NIBP (SPLF-NP model only)

Metod: Automatic oscillometric

Operation modes: Manual, Automatic, Continuous

Automatic mode measurement interval:    1min/2min/3min/4min/5min/10min/15min/30min/60min/90min/2h/3h

Continuous mode measurement period: 5mins, with 5s between each measurement

Maximum single measurement time: 180s

Measurement range:

Systolic BP: Adult mode: 40 ~ 270 mmHg, Pediatric mode: 40 ~ 200 mmHg,

Diastolic BP: Adult mode: 10 ~ 210 mmHg, Pediatric mode: 10 ~ 162 mmHg,

MAP: Adult mode: 20 ~ 230 mmHg, Pediatric mode: 20 ~ 175 mmHg

Accuracy: Mean error: <±5mmHg, Standard deviation: <8mmHg

Static pressure measurement range: 0 mmHg (0kPa) ~ 300mmHg (39.9kPa)

Static pressure measurement accuracy:  ±2mmHg or ±1% of reading (Whichever is greater)

Resolution: 1 mmHg

Software over-pressure protection: Adult mode: 297 ±3mmHg, Pediatric mode: 240 ±3mmHg

Capnography

Method: Infrared radiation absorption technology

CO2 measurement range: 0 ~ 20 Vol%

Accuracy: 0 ~ 12 %: ± (0.2 Vol% + 2% of reading), 12 ~ 20 % : ± (0.2 Vol% + 6% of reading)

Producer: Zug Medical Systems SAS, France
