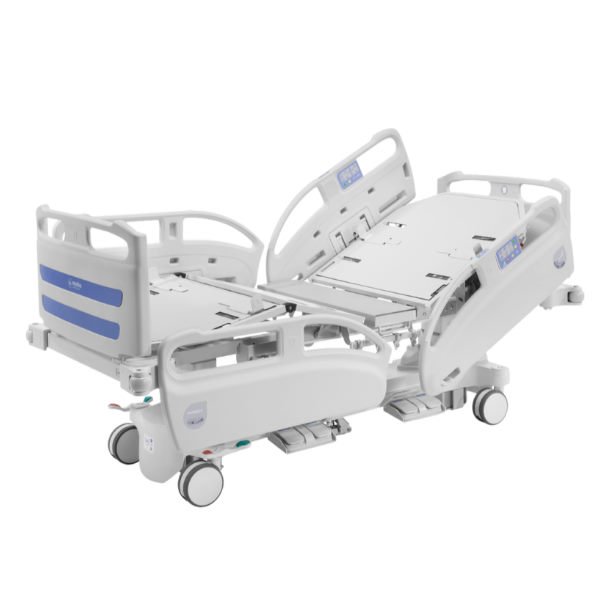

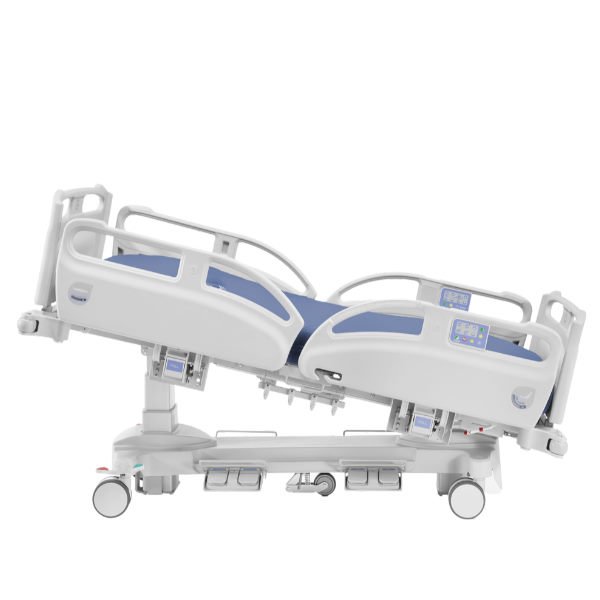

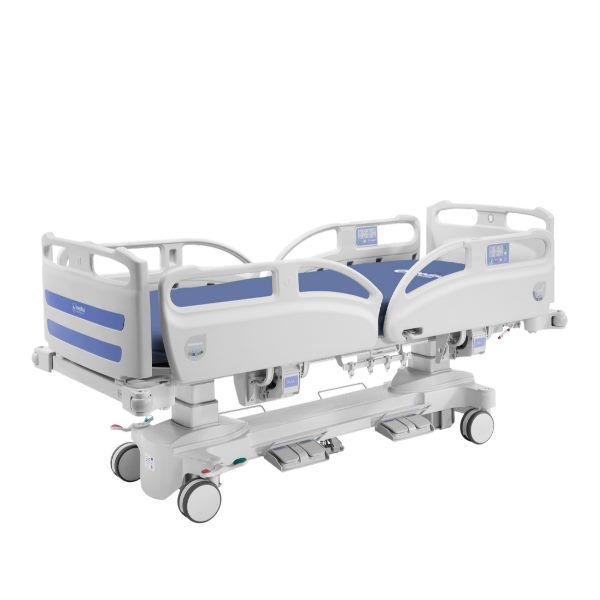

Hospital bed MAJESTIC 3, electric

MAJESTIC 3 - is a hospital bed that will be an excellent solution to meet the highest demands of the global hospital sector.

• Reduces the physical effort required to move patients.
• Contributes to the improvement of pressure ulcers.
• Innovative concept of side rails that cover 100% of the bed.
• Improving the patient's recovery process thanks to its advanced ergonomic design, which increases autonomy and mobility.

  Platform:

• New design for headboard and footboard that improves matress retention, preventing its displacement. The fixing system to the structure allows detaching them easily without tools.
• Complete with supports for accessories (IV drip rod, lifting pole,etc. ) on each corner of the bed.
• Raising system for greater stability in any position and working load up to 250 kg
• Bed base with four independent and detachable HPL lying sections.
• Adjustable side retainers that prevent displacement of mattresses of different sizes.

Comfort and design:

• Four independent HDPE Medical side rails in accordance with standard rule EN 60601-2-52 with gas spring assist and one hand operation
• Side rails with an innovative mechanism that requires minimal folding, no more than 7.5 cm
• The design of the side rails allows protecting the patient in the totality of the lying surface
• “Help to stand up” button. It allows optimizing the sequence of thepatient’s exit from the bed
• The bed has two blue LED light points integrated in the rail that are activated when it is lowered
• Automatic alarm of the backrest at 30º
• Double automatic anti-decubitus regression system to allow a backplane regression (11 cm) and leg regression (7 cm)
• Radiolucent backrest section with RX cassette holder (optional Ref.CHV26) that allows the extraction of the tray without articulating the backrest

Handling and systems control:

• Sections, height and trendelenburg / reverse trendelenburg adjustment accomplished by low tension motors electric motors
• Cardiac chair position to provide a more comfortable patient stay
• Exit position button, that easies the patient to leave the bed
• Functions can be locked individually or in a simultaneous way through “STOP” button
• Centralized braking system and steering facility
• 5th wheel (optional Ref.CHV24) central and directional Ø125 mm. 360º rotating
• Panel for medical staff, it allows to activate and cancel the different functions of the bed
• Patient handset (inside rails): Allows patients to control and regulate the sections of the backrest, back/foot and height, activation of the “GO” button and the night light under the bed

Safety:

• Emergency release system in the event of electrical or battery back-up failure (CPR position)
• Bilateral pedal for height adjustment. Allows adjust height to reduce harm risks
• Double led safety positioning light (green color to indicate minimum height, red when it exceeds minimum safety height)
• Braking pedal alarm: When the bed is connected this alarm warns if the braking system is deactivated
• Low battery alarm
• Safe fixation of the footboard and headboard that can be locked by a manual fixation system, without tools, which allows the bed transport without gaps and risks
• IPX6 protection against water and dust

Technical data:

• External dimensions: 2233 x 980 mm
• Patient surface: 2000 x 850 mm
• Height adjustment: 428 to 748 mm (455 mm to 775 mm with scale)
• Backrest tilting: 67º
• Legrest tilting: 28º
• Trendelenburg/reverse-trendelenburg: ± 16º
• Backrest autoregression: 150 mm
• Footrest autoregression: 70 mm
• Maximum working load: 250 kg
• Weight without accessories : 150 kg

Manufacturer: Medical Iberica, S.A., Spain
